·Disintegration device for solid in fluid condition

·Sharp spear - to crush any solid which possibly cause system damage.

·Solid shield - to protect the follow-up treatment equipment, to facilitate

  follow-up treatment, reduce maintenance costs.

Working Principle:

·Solid particles flow into the pipe crusher with the wastewater, under the shearing force of hobbing cutter. The disintegrated solid debris would pass through the crusher and flows with the water to the following treatment processes.

Features and advantages:

·High resistance of abrasion and corrosion

·No shelter or building is required, can be operated under open air condition.

·Multiple blade combinations, suitable for a variety of solid broken request.

·The crusher can be flexibly jointed with other corollary products to form multi-functional combination.

·Modularized design allows easy installation, flexible, for the existing pipe network or ditches almost do not need to transform the original system can be installed.

Application and function

　 This solid crusher is suitable for: parks/amusement facilities, commerce and industry, recycle facilities, urban wastewater treatment plants, airports, petrochemical facilities, pelagic/freshwater boats and ships, piers, food processing and etc.

·Applies to the sewage pumping station pretreatment: Saving the labor cost and construction cost, beautified landscaping, protected pump, changed traditional residue salvage operation method and minimized the machine's shutdown time.

·Applies to a sludge sedimentation tank: Disintegrate solid matter to even sized fragments is propitious for further digesting processes.

·Applies to belt-pressing filter and centrifugal dewatering machine: Provide maximum protection for filter belt with not easy tear and puncture, roller and coating would be hardly worn-out.After crusher's processing, even sized fragments could be easily treated, in this way, one stable and economical operation environment would elevated dewatering efficiency.

Corollary equipments

　　The crusher can be flexibly jointed with our company's GL series grille, GLN GLT GLNT—series sludge treatment equipments to form complete sets of equipment, implementation broken, solid-liquid separation, sludge dewatering condensing a series of functions.

Installation

　 Installation of crusher is easy and flexible. GGP pipe crusher could be installed by Flanged pipe connections and opening up channels connections. When connect with channels, according actual condition, the adaptable dimension of the framework would be designed to suit different depth demand. Use blots to fix framework and channel, no pre-embedded parts were needed. The crusher could connect with frame by direct plug together, no extra fixture was required. The crusher has light weight, convenient lifting, installation and future maintenance is very convenient.

　GGP-pipe crusher has a single motor drive. This motor is replaceable standardized part, can be changed to suit different demand.

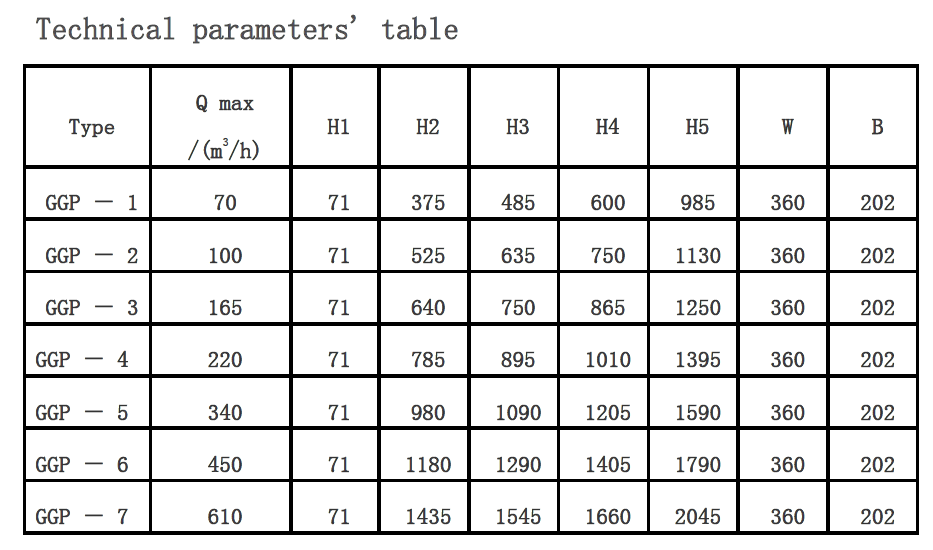

GGP technical parameters' chart
