GL1--revolving harrow mesh fine grille

Application scope

Product advantage

·equipped with solid/liquid separating device

·filter residue washing device

·filter residue pressing device


Characteristic
introduce
parameter

wide application

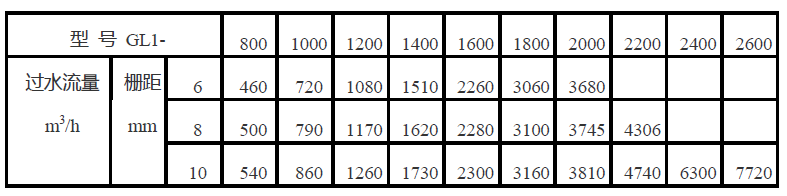

    According to different bar spacing(6mm---10mm) and the screen basket diameter(800mm—2600mm), the maximum throughput capacity can reach 7720m3/h. (click for equipment selection )


    Advanced function: avoiding secondary pollution

    Integrate the filter, transmission, squeezed function; The screenings after pressing and dewatering, which's solid content is up to 30%--45%DS. No bring about secondary pollution for the environment.


    low operation cost

  Whole set of the equipment consumes less electrical power, and equipped with liquid level automatic control function.

    performance steady and reliable ; with low maintenance rate.

  Adopted with high efficacy electric decelerator as drive device, electrical appliances controlling system use the world famous brand components.

    high resistance of corrosion with long service life

   Whole body of the equipment was made of stainless steel and treated with pickling passivation,high anti-corrosion capability .

    simple operation

   Electrical controlling used graphic menu display


consumption meter

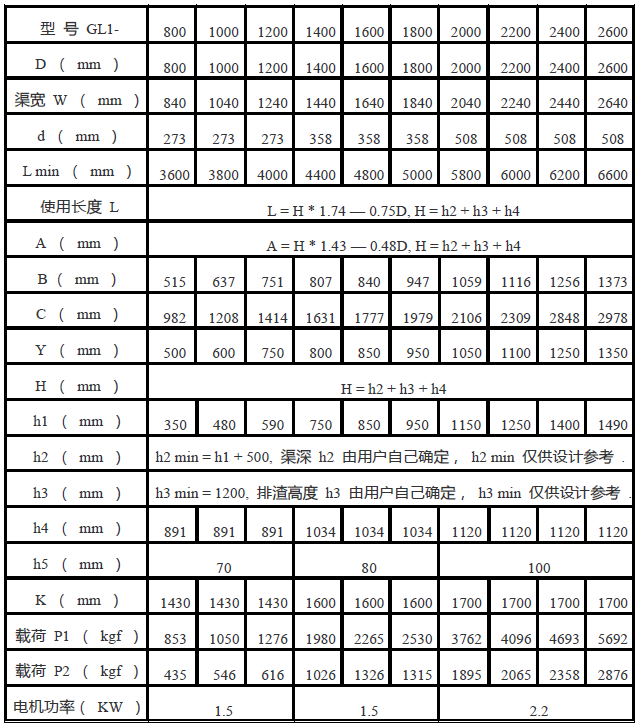

main technical parameters
